EMISSIONS, COLORADO, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, MINNESOTA, NEVADA, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT, VIRGINIA AND WASHINGTON STATE REQUIREMENTS

ENGINE, 6.6L V8 WITH DIRECT INJECTION

TRANSMISSION, 8-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

GVWR, 9900 LBS. (4490 KG)

REAR AXLE, 3.42 RATIO

LT PREFERRED EQUIPMENT GROUP

SUMMIT WHITE

MEDIUM PEWTER, CUSTOM CLOTH

DIFFERENTIAL, HEAVY-DUTY LOCKING REAR

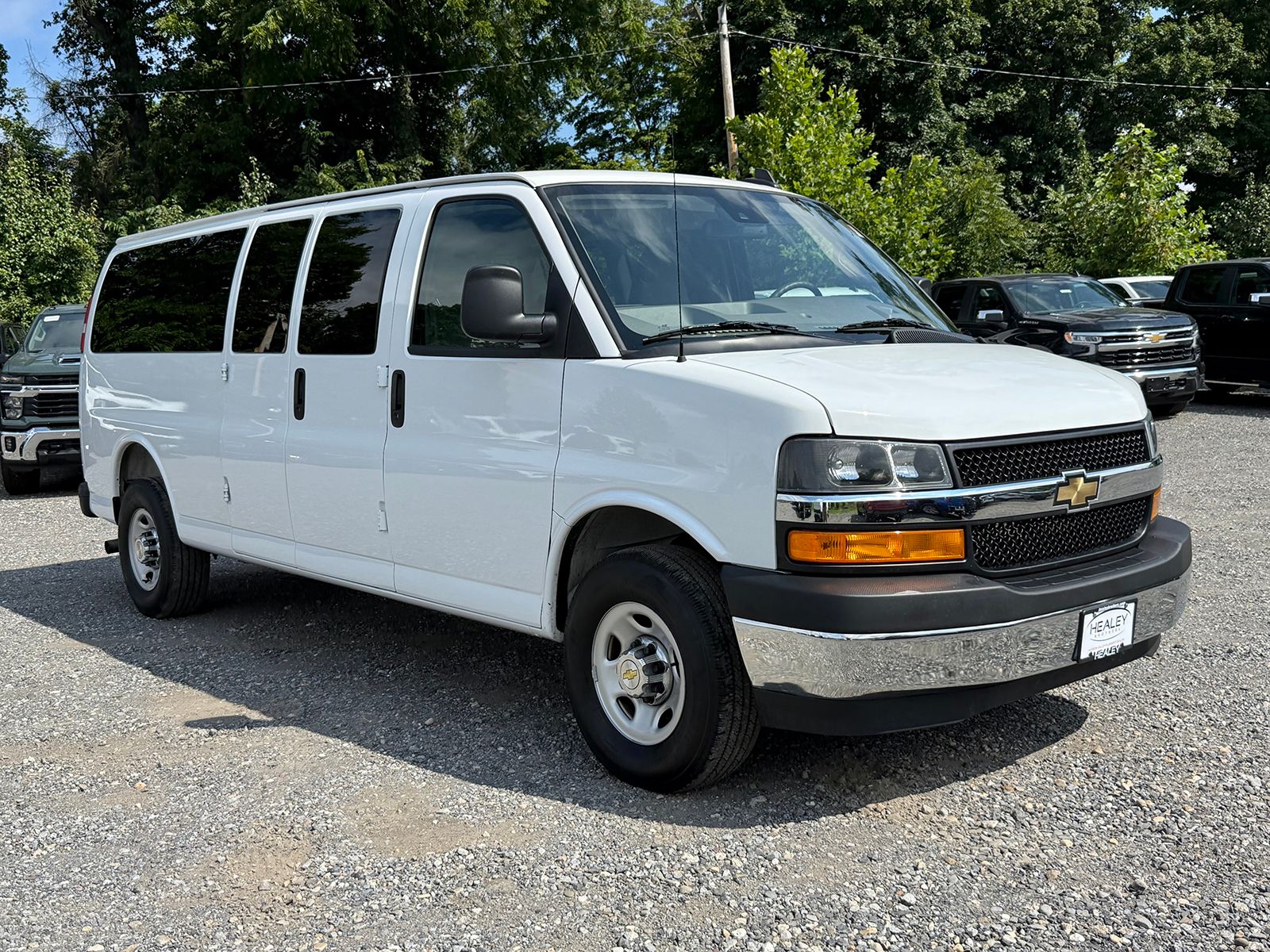

Vehicle Name - Chevrolet Express Passenger

Body Style - Passenger Van

Body Code - ZW9

Drivetrain - Rear Wheel Drive

Passenger Capacity - 12

Gross Axle Wt Rating - Front (lbs) - - TBD -

Gross Axle Wt Rating - Rear (lbs) - 6084

Curb Weight - Front (lbs) - 3189

Curb Weight - Rear (lbs) - 2984

Gross Vehicle Weight Rating Cap (lbs) - 9900

Tons/yr of CO2 Emissions @ 15K mi/year -

Fuel Economy Est-Combined (MPG) -

EPA Fuel Economy Est - City (MPG) -

EPA Fuel Economy Est - Hwy (MPG) -

Gross Combined Wt Rating (lbs) - 16000

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 9200

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 920

Fifth Wheel Hitch - Max Trailer Wt. (lbs) -

Fifth Wheel Hitch - Max Tongue Wt. (lbs) -

Maximum Trailering Capacity (lbs) - 9200

Engine Order Code - L8T

Engine Type - Gas V8

Displacement - 6.6L/- TBD -

Fuel System - Direct Injection

SAE Net Horsepower @ RPM - 401 @ 5200

SAE Net Torque @ RPM - 464 @ 4000

Trans Order Code - N8X

Trans Type - 8

Trans Description Cont. - Automatic

Trans Description Cont. Again -

First Gear Ratio (:1) - - TBD -

Second Gear Ratio (:1) - - TBD -

Third Gear Ratio (:1) - - TBD -

Fourth Gear Ratio (:1) - - TBD -

Fifth Gear Ratio (:1) - - TBD -

Sixth Gear Ratio (:1) - - TBD -

Seventh Gear Ratio (:1) - - TBD -

Eighth Gear Ratio (:1) - - TBD -

Reverse Ratio (:1) - - TBD -

Clutch Size (in) -

Trans Power Take Off -

Trans PTO Access -

Transfer Case Model -

Transfer Case Gear Ratio (:1), High -

Transfer Case Gear Ratio (:1), Low -

Transfer Case Power Take Off -

Cold Cranking Amps @ 0? F (Primary) - 770

Cold Cranking Amps @ 0? F (2nd) -

Maximum Alternator Capacity (amps) - 220

Maximum Alternator Watts - - TBD -

Total Cooling System Capacity (qts) - - TBD -

Engine Oil Cooler - Yes

Frame Type - Ladder-Type

Suspension Type - Front - Coil Spring

Suspension Type - Rear - Hypoid Drive

Spring Capacity - Front (lbs) - 4300

Spring Capacity - Rear (lbs) - 6084

Axle Type - Front - Independent

Axle Type - Rear - Full-Floating

Axle Capacity - Front (lbs) - 4300

Axle Capacity - Rear (lbs) - 6084

Axle Ratio (:1) - Front -

Axle Ratio (:1) - Rear - 3.42

Shock Absorber Diameter - Front (mm) - - TBD -

Shock Absorber Diameter - Rear (mm) - - TBD -

Stabilizer Bar Diameter - Front (in) - 1.38

Stabilizer Bar Diameter - Rear (in) -

Front Tire Order Code - XLP

Rear Tire Order Code - YLP

Spare Tire Order Code - ZLP

Front Tire Size - LT245/75R16E

Rear Tire Size - LT245/75R16E

Spare Tire Size - LT245/75R16E

Front Tire Capacity (lbs) - 3042

Rear Tire Capacity (lbs) - 3042

Spare Tire Capacity (lbs) - - TBD -

Revolutions/Mile @ 45 mph - Front (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Rear (Rev/Mile) - - TBD -

Revolutions/Mile @ 45 mph - Spare (Rev/Mile) - - TBD -

Front Wheel Size (in) - 16 x 6.5

Rear Wheel Size (in) - 16 x 6.5

Spare Wheel Size (in) - 16 x 6.5

Front Wheel Material - Steel

Rear Wheel Material - Steel

Spare Wheel Material - Steel

Steering Type - Pwr

Steering Ratio (:1), On Center - 17.2

Steering Ratio (:1), At Lock - 17.2

Turning Diameter - Curb to Curb (ft) - 54.5

Turning Diameter - Wall to Wall (ft) - - TBD -

Brake Type - Pwr

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) -

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 12.8 x 1.5

Rear Brake Rotor Diam x Thickness (in) - 13 x 1.1

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 31

Aux Fuel Tank Capacity, Approx (gal) -

Fuel Tank Location - Mid-Frame

Aux Fuel Tank Location -

Front Head Room (in) - 40.85

Front Leg Room (in) - 41.35

Front Shoulder Room (in) - 68.85

Front Hip Room (in) - 65.48

Second Head Room (in) - 38.42

Second Leg Room (in) - 36.3

Second Shoulder Room (in) - 68.6

Second Hip Room (in) - 65.62

Third Head Room (in) - 38.5

Third Leg Room (in) - 36.58

Third Shoulder Room (in) - 65.75

Third Hip Room (in) - 63.25

Fourth Head Room (in) - 38.3

Fourth Leg Room (in) - 36.58

Fourth Shoulder Room (in) - 69.1

Fourth Hip Room (in) - 65.65

Fifth Head Room (in) -

Fifth Leg Room (in) -

Fifth Shoulder Room (in) -

Fifth Hip Room (in) -

Wheelbase (in) - 155.1

Length, Overall (in) - 243.95

Width, Max w/o mirrors (in) - 79.25

Height, Overall (in) - 84.7

Overhang, Front (in) - 39.7

Overhang, Rear w/bumper (in) - 49.13

Ground to Top of Load Floor (in) - 32.2

Ground Clearance, Front (in) - 9.45

Ground Clearance, Rear (in) - 8.6

Rear Door Type - Dual Swing-Out

Rear Door Opening Height (in) - 45.7

Rear Door Opening Width (in) - 53.42

Side Door Type - Swing-Out

Side Door Opening Height (in) - 46.7

Side Door Opening Width (in) - - TBD -

Step Up Height - Front (in) - 27.25

Step Up Height - Side (in) - 27.85

Cargo Area Length @ Floor to Console (in) - 173.65

Cargo Area Length @ Floor to Seat 1 (in) - 146.05

Cargo Area Length @ Floor to Seat 2 (in) - - TBD -

Cargo Area Length @ Floor to Seat 3 (in) - - TBD -

Cargo Area Length @ Floor to Seat 4 (in) - - TBD -

Cargo Area Width @ Beltline (in) - - TBD -

Cargo Box Width @ Wheelhousings (in) - 50.9

Cargo Box (Area) Height (in) - 51.8

Cargo Volume to Seat 1 (ft?) - 255.5

Cargo Volume to Seat 2 (ft?) - - TBD -

Cargo Volume to Seat 3 (ft?) - - TBD -

Cargo Volume to Seat 4 (ft?) - - TBD -

Model Group - Express

Vehicle Segment - Large Van

Vehicle Type - Extended Passenger Van

Body Cab Style - Extended Passenger Van

Engine Displacement Units - 4.3

Engine Camshaft - OHV

Engine Block Type - aluminum

Engine Cylinder Count - 6

Engine Valve Count - 2

Country of Origin - United States Chevrolet Active
